5400 Litre Harlequin ITE Vertical Bunded Oil Tank

Our Steel Bunded Diesel Dispensing Tanks are perfect for commercial fuel installations. This 650 litre capacity Steel Bunded Diesel tank is manufactured by us, in the North of England.

The TEB650 comes as standard with a secure, sumped lockable cabinet with steel doors & are manufactured from high quality mild steel plate to BS EN 10025.

The outer tank holds a minimum of 110% of the inner tank to comply with all current legislation & comes with a 10 year guarantee, though if properly maintained, the TEB Diesel Tanks are built to last over 30 years.

This 650 litre Diesel Tank can be be fully bespoke built, whether it's a different inlet / outlet, higher flow pump, hose reels or even a split compartment to allow storage of other fluids like DEF within the same tank. We can also adjust the Length, Width or Height to suit your requirement. Please contact us to discuss options & get a quote.

Standard Spec -

Bund & Contents Gauge

2" BSP Fill Point with Cap & Non return valve

Tank Vent Cap

Service Hatch

Corner Plinths with optional tank legs

High Security Sumped Cabinet with Lockable Steel Doors

Lifting Points

BS381C 226 - Green (Any colour available on request. Marine grade paints available)

10 Year Guarantee (life expectancy over 30 years if properly maintained)

Contact us if you would like a quote for this tank & let us know if you'd require any changes / additional items

Compliancy -

BS799 part 5

Control of pollution (oil storage) (England) regulations 2001

PPG2

PPG26

Our Steel Bunded Diesel Dispensing Tanks are perfect for commercial fuel installations. This 9,000 litre capacity Steel Bunded Diesel tank is manufactured by us, in the North of England.

The TEB9100 comes as standard with a secure, sumped lockable cabinet with steel doors & are manufactured from high quality mild steel plate to BS EN 10025.

The outer tank holds a minimum of 110% of the inner tank to comply with all current legislation & comes with a 10 year guarantee, though if properly maintained, the TEB Diesel Tanks are built to last over 30 years.

This 9,000 litre Diesel Tank can be be fully bespoke built, whether it's a different inlet / outlet, higher flow pump, hose reels or even a split compartment to allow storage of other fluids like DEF within the same tank. We can also adjust the Length, Width or Height to suit your requirement. Please contact us to discuss options & get a quote.

Standard Spec -

Bund Gauge

Hydrostatic Contents Gauge

2" BSP Fill Point with Cap & Non return valve

Tank Vent Cap

Service Hatch

Base Plinths

High Security Sumped Cabinet with Lockable Steel Doors

Lifting Points

BS381C 226 - Green (Any colour available on request. Marine grade paints available)

10 Year Guarantee (life expectancy over 30 years if properly maintained)

Contact us if you would like a quote for this tank & let us know if you'd require any changes / additional items

Compliancy -

BS799 part 5

Control of pollution (oil storage) (England) regulations 2001

PPG2

PPG26

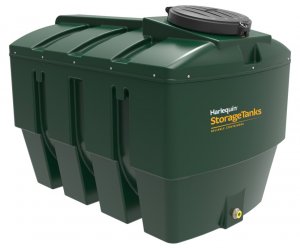

This 2500 litre capacity horizontal environment-friendly bunded oil tank from Harlequin is suitable for the storage of heating oil in a domestic or commercial space. Equipped with a range of fittings, including a smart contents gauge with a smartphone app and bottom outlet fitting kit this bottom outlet tank provides a complete solution for a fully compliant installation.

Made from Medium Density Polyethylene (MDPE), this tank is lightweight, durable, non-corrosive, simple to install and aesthetically pleasing.

Integrally bunded

Bottom outlet with 1" BSP(F) thread

16" lockable access lid

4" lockable inspection cap

2" fill point

32mm hole with cover for electronic gauge

Ultrasonic contents gauge

Bottom outlet fitting kit

LRC overfill prevention probe

Inner tank vent

Manufactured in the UK from Mild Steel Plate, this Steel Bunded Heating Oil Tank is suitable for the storage of most fuels and light oils.

Included with this Bunded Oil Tank is -

Float Type Bund Gauge

Float Type Tank Contents Gauge

2" BSP Fill Point with Cap

2" BSP Tank Vent with Cap

1" BSP Base feed with Isolation Valve

1" BSP Return Point

Top Lift points (Lift empty only)

1" BSP Spare socket into bund

10 Year Guarantee

Optional Extras -

Top Feed Outlet

Fill Point Cabinet

Overfill Valve

Electronic Tank Gauges

Selenoid Valves

Day Tank Controllers

Pump Kits

Low Level Fill Points

This self bunding, steel oil storage tank is manufactured to comply with all current regulations.
Suitable for above ground instillations at Domestic, Commercial, Agricultural and industrial locations for storage of Paraffin, Kerosene, diesel oils and light lubricant oils.

Both the inner and outer tanks are constructed from mild steel plate to BS EN 10025.The inner tank providing the required storage area, the outer tank forms the required bund, with capacity of 110% of the total liquid being stored.

The tank vent is piped into the bund then to atmosphere further reducing the risk of spills in the event of overfilling the tank. Tanks are fitted with steel base supports to eliminate ground contact with the tank base. The tanks can also be fitted with steel legs to raise of the floor for gravity feed applications

Compliancy: BS799 part 5, Control of pollution (oil storage) (England) Regulations 2001, PPG2, PPG26.
